Elepipe® 8010
General description
Designed for vertical down welding of pipes up to and including API 5L X70
Excellent resistance to porosity, X-ray quality welds
High stacking efficiency: fill joints in fewer passes
Exceptional mechanical properties
Classification
|
AWS A5.1 |
:E8010-P1 |
|
ISO 2560-A |
:E 46 4 1 Ni C 25 |
Current type / Shielding gas
DC eleсtr +
Materials to be welded
|
Steel |
Code |
Type |
|
Tube material |
API 5LX |
X56, X60, X65, X70 |
Typical operating procedures, Shielding gas Ar+ (>5-25)%CO2
|
Diameter |
Current / voltage |
|
|
(mm) |
||
|
3.2 |
(A) |
110 |
|
4.0 |
(А) |
150 |
|
5.0 |
(A) |
165 |

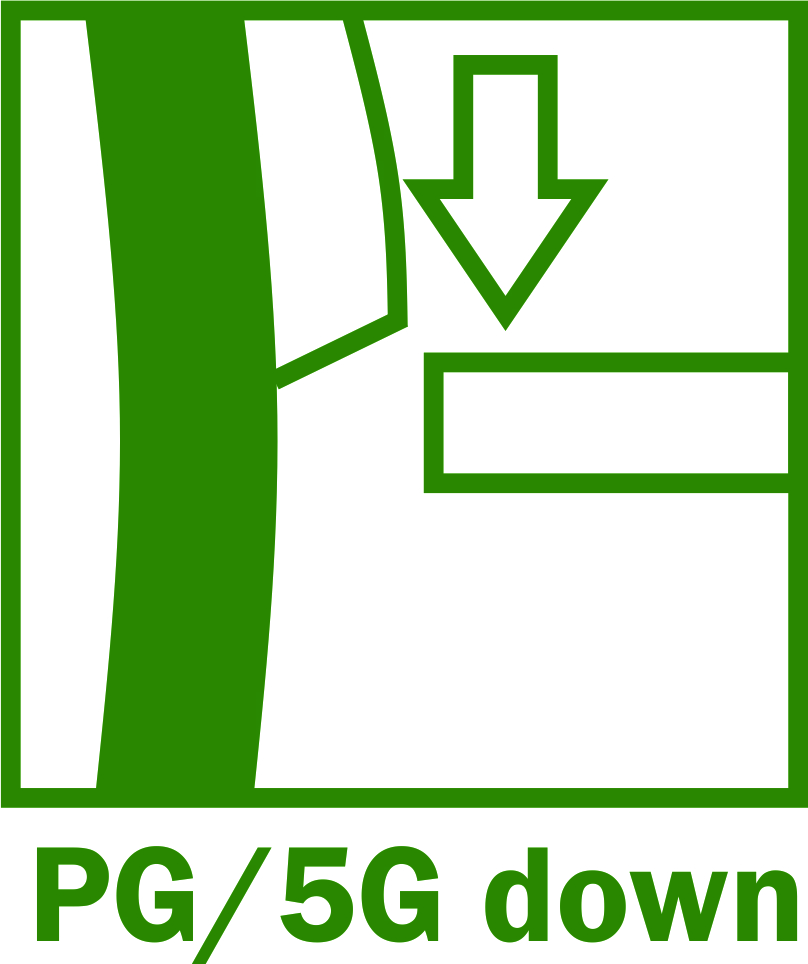

Welding positions
Chemical composition (w%) typical, all weld metal
|
C |
Mn |
Si |
Ni |
Mo |
P |
S |
|
0.17 |
0.7 |
0.25 |
0.8 |
0.2 |
0.01 |
0.01 |
Mechanical properties, all weld metal
|
|
Condition |
0.2 % Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Elongation (%) |
Impact (ISO), J |
|||
|
-29oС |
-40oС |
-46oС |
||||||
|
Required |
AWS A5.5 |
|
min 460 |
min 550 |
min 19 |
27 |
|
|
|
|
ISO 2560-A |
|
min 460 |
530-680 |
min 20 |
|
min 47 |
|
|
Typical values after welding |
AW |
460-559 |
550-676 |
20-27 |
62-99 |
|
46-84 |
|
