General Description
Solid wire/rod for welding general construction in mild steel
High impact toughness
Stable arc and excellent feedability (Revix®70S-3)
Shielding gases (acc. EN 439)
|
GTAW |
l1 |
Inert gas Ar 100% |
|
GMAW |
М21 |
Mixed gas Ar+ >5-25% CO2 |
|
|
C1 |
Active gas 100% СО2 |

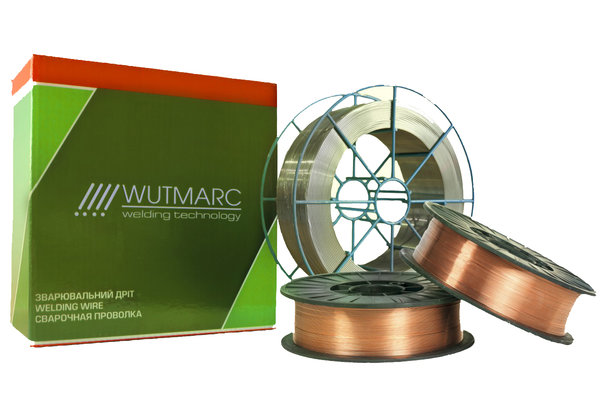

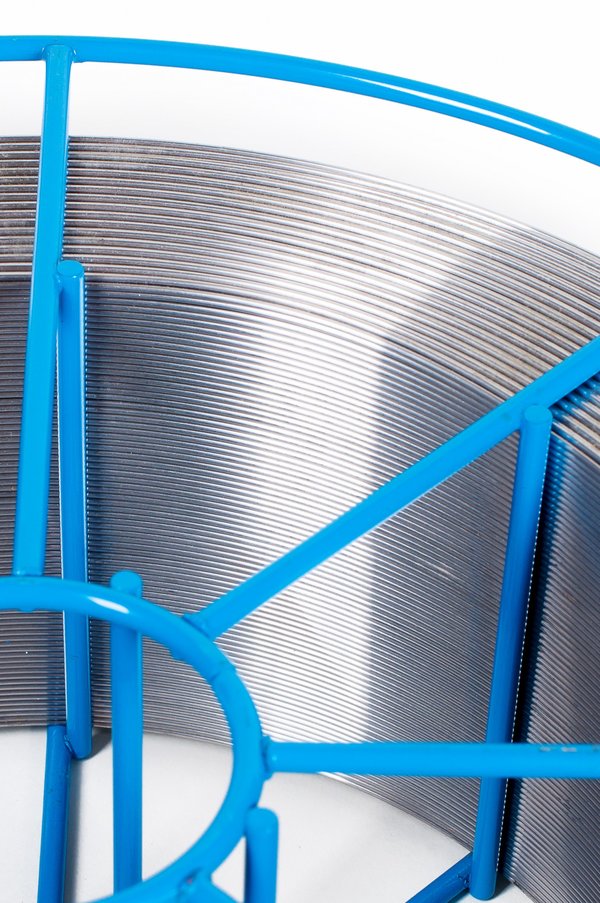

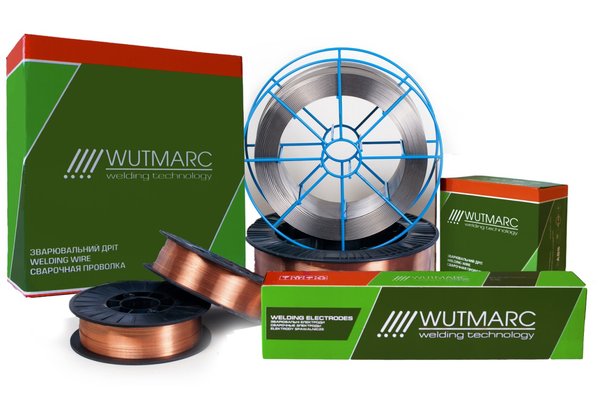

Packaging, available sizes and identification
|
|
|
Sizes, mm |
||||||
|
Process |
Unit: |
0.8 |
1.0 |
1.2 |
1.6 |
2.0 |
2.4 |
3.0 |
|
GTAW |
2 and 5 kg tube |
|
|
|
Х |
Х |
Х |
Х |
|
GMAW |
15 kg spool B300 |
Х |
Х |
Х |
|
|
|
|
|
|
300 kg spool |
|
Х |
|
|
|
|
|
|
Other sizes and packaging on request |
||||||||
Classification
|
AWS A5.18/A5.18M |
:ER70S-3 |
|
EN 1668 |
:W 42 5 W2Si |
|
EN 440 |
:G 42 2 M G2Si |
Approvals
|
|
ABS |
BV |
DNV |
GL |
LR |
TÜV |
|
GTAW |
|
|
|
|
|
+ |
|
GMAW |
3YSA |
SA3, 3YM |
IIIYMS |
3YS |
3S, 3YS |
|
Materials to be welded
|
Steel |
Code |
|
General structural steel |
EN 10025 |
|
Ship plates |
ASTM A131 |
|
Cast steel |
EN10213-2 |
|
Pipe material |
EN 10208-1 / EN 10208-2 |
|
|
API 5LX |
|
|
EN 10216-1/ EN 10217-1 |
|
Boiler & pressure vessel steel |
EN 10028-2 |
|
Fine grained steel |
EN 10113-2 / EN 10113-3 |
Chemical composition (w%), typical, all weld metal
|
C |
Mn |
Si |
|
0.08 |
1.1 |
0.6 |
Mechanical properties, all weld metal
|
|
Process |
Shielding gas |
Condition |
Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Elongation (%) |
Impact (ISO), J |
|
|
-20оС |
-50оС |
|||||||
|
Typical values after welding
|
GTAW |
I1 |
AW |
450 |
560 |
26 |
170 |
100 |
|
GTAW |
I1 |
SR 15h/620oC |
410 |
525 |
26 |
|
80 |
|
|
GMAW |
M21 |
AW |
500 |
575 |
25 |
95 |
|
|
