Revis® 80S-G
General Description
Solid wire for welding of weather resisiting steels
Shielding gases (acc. EN 439)
|
GTAW |
I1 |
Inert gas Ar 100% |
|
GMAW |
М21 |
Mixed gas Ar+ >5-25% CO2 |
|
|
C1 |
Active gas 100% СО2 |
Chemical composition (w%), typical, all weld metal
|
C |
Mn |
Si |
Ni |
Cu |
|
0.1 |
1.4 |
0.75 |
0.8 |
0.3 |
Materials to be welded
|
Steel |
Code |
Type |
|
Weather resisting steels |
EN 10155 |
S 235 J 0 W |
|
|
|
S 235 J 2 W |
|
|
|
S 355 J 0 W |
|
|
|
S 355 J 2 W |
|
|
|
S 355 K 2 G 1 W |
Packaging, available sizes and identification
|
|
|
Sizes, mm |
||
|
Process |
Unit: |
1.0 |
1.2 |
1.4 |
|
GTAW |
5 kg tube |
|
|
Х |
|
GMAW |

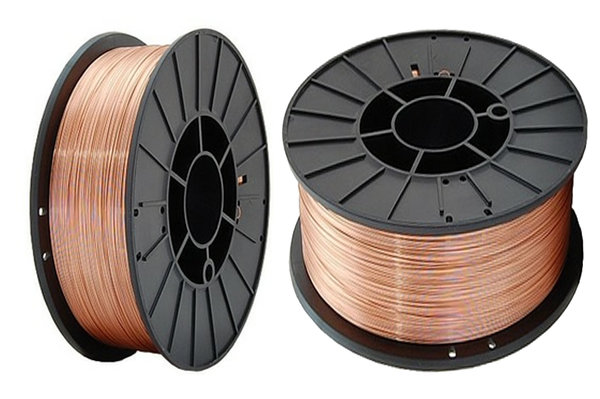

15 kg spool B300 |
Х |
Х |
|
Other sizes and packaging on request
Classification
|
AWS A5.28 |
:ER80S-G |
Low alloy solid wire
Mechanical properties, all weld metal
|
|
Process |
Shielding gas |
Condition |
Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Elongation (%) |
Impact (ISO), J |
|
-20оС |
|||||||
|
Typical values after welding |
GTAW |
I1 |
AW |
570 |
620 |
26 |
80 |
|
GMAW |
M21 |
AW |
570 |
620 |
26 |
80 |
