Revicu®CuSn
General Description
Solid wire for GMAW of copper
Shielding gas (acc. EN)
|
GMAW |
I1 |
Inert gas Ar 100% |
|
|
I3 |
Inert gas Ar + > 0-95% Не |
Classification
|
AWS A5.7-84R |
:ERCu |
|
EN 14640 |
:S Cu 1898 (CuSn1) |
Packaging, available sizes and identification
|
|
|
Sizes, mm |
|
|
Process |
Unit: |
1.0 |
1.2 |
|
GMAW |

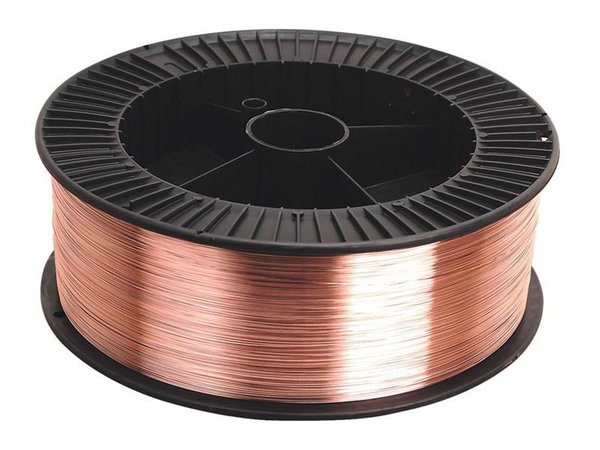

12 kg spool В300 |
X |
X |
Materials to be welded
|
Material grades such as: |
Code |
Type |
W.Nr. |
|
Copper |
DIN 1787 |
OF-Cu |
2.0040 |
|
|
|
SE-Cu |
2.0070 |
|
|
|
SW-Cu |
2.0076 |
|
|
|
SF-Cu |
2.0090 |
|
Wrought low alloyed copper alloys |
DIN 17666 |
CuFe2P |
2.1310 |
|
|
|
CuSP |
2.1498 |
|
|
|
CuTeP |
2.1546 |
Cu-base solid wire
Chemical composition (w%), typical, all weld metal
|
Cu |
Mn |
Si |
Sn |
Ni |
|
rest |
0.2 |
0.3 |
0.8 |
0.1 |
Mechanical properties, all weld metal
|
|
Process |
Shielding gas |
Condition |
0.2% Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Elongation (%) |
Hardness НВ
|
|
Typical values after welding |
GMAW |
I1 |
AW |
100 |
220 |
60 |
35 |
