Nifer®50

GENERAL INFORMATION

Alloy Nifer®50 – is a magneto-soft iron-nickel alloy with the content of nickel 48%, saturation magnetic induction is 1,55 T and alloys with similar high saturation induction. Nifer®50 has the highest saturation induction, possible for similar alloys. Typical scopes: low-frequency power sensor, rotor and stator plates, throttles, high-purity relays, integrated current transformers for protective switches, stepper motors, magnetic gates, shielding. Nifer®50 it can be produced in three options depending on a scope.

MAGNETIC PROPERTIES

Magnetical inductive capacity, µ4

≥10000

Magnetical inductive capacity, µмах

≥80000

Coercive field, A/m

≥8

Induction(at Нeff= 160mA/cm), mT

≥1000

Core losses, W/kg

0,25

 It is possible to receive the specified magnetic properties only after special final annealing. Temperature condition of annealing is set in limits 1050оС and 1250оС. After final annealing cooling is carried out to 450оС in furnaces during 5-70 hours. Further cooling isn't critical. After final heat treatment, details shouldn't be loaded mechanically as each plastic transformation leads to loss of magnetic properties



CORROSION RESISTANCE

Resistance to corrosion has an average value in the damp atmosphere.

Classification

DIN

1.3922

UNS

K94840



PROCESSING PROPERTIES

Density, g/cm3

8.2

Melting range, °С

1369-1376

Heat conductivity , W/(m∙°С)

15

TCLE, mm/m∙°С (from 20° to 100°С)

8.9

Elastic modulus, KN/mm2

160

Saturation magnetostriction

25·10-6

Electric resistance, µΩ∙m

0.45

Curie temperature, °С

470

Chemical composition, %

Ni

Fe

C

Mn

Si

48.0

rest

0.02

0.4

0.4

Mechanical properties at 20°С

IN ANNEALED CONDITION

Tensile strength, MPa

530

Yield strength (0.2%), MPa

220

Elongation, %

30

Hardness, HRB

55-69

MAIN DELIVERY CONDITIONS

Blanks

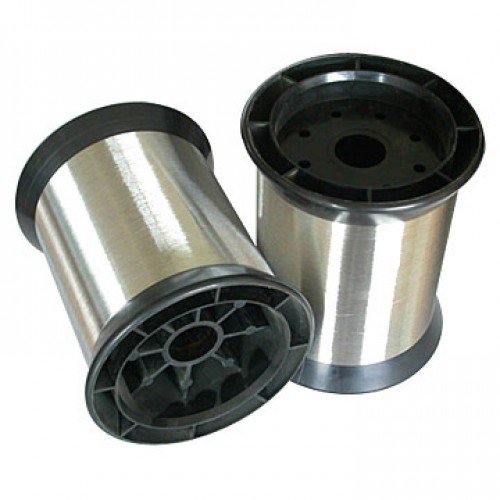

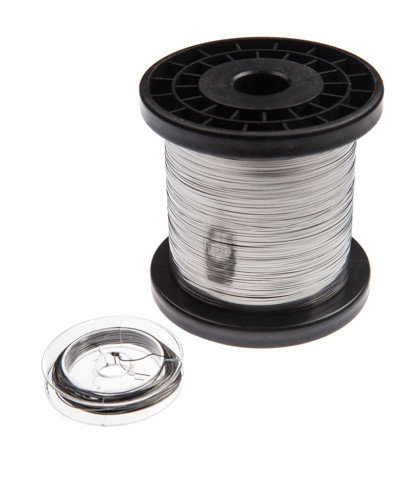

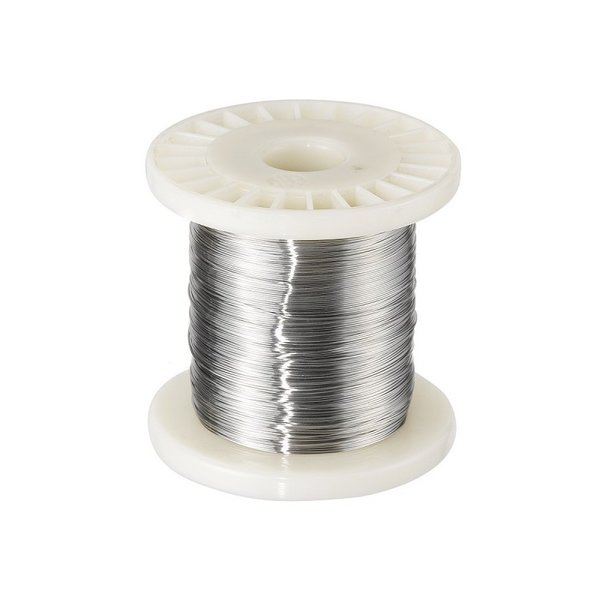

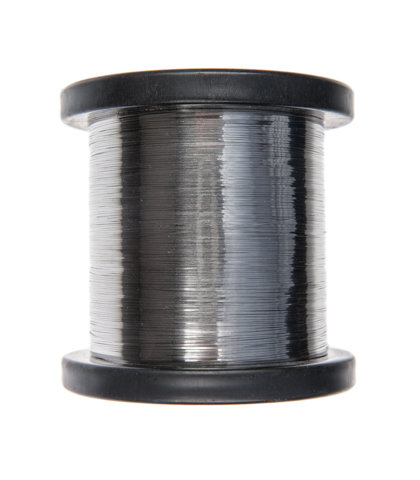

Strands, strips, sheets, round bars, wire

Ready details

Belt-type toroidal core, rolled sheeting for the core, relay details, stamped and bent other flexible details
