Cu-OFE®

Oxygen –Free, High Conductivity Copper (OFE, CW009A, C101) –alloy (99.99 % minimum Cu) offers
the advantages of both Electrolytic Tough Pitch Copper (ETP, CW004A, C110)-alloy and Phosphor Deoxidized Copper (DHP, CW024A, C122) -alloy. The high purity and absence of deoxidisers
accounts for electrical conductivity of 101 % IACS as well as no susceptibility for hydrogen embrittlement. Due to the absence of oxides in the structure, OFE-OK is capable of withstanding critical electrical, electronic and communication applications

Properties:


• Highest possible electrical conductivity min. 101 % IACS
• Highest possible thermal conductivity
• Good formability
• Excellent corrosion resistance
• Resists hydrogen embrittlement
• Low metal volatility in vacuum
• High scrap value

Composition:

• Cu min 99,99 %
• Oxygen free (O2 max 5 ppm), high conductivity copper

Typical applications:

  • Printed circuits,
  •  Bonding applications,
  •  Electrical and electronic conductors,
  •  Magnetrons,
  •  Vacuum interrupters

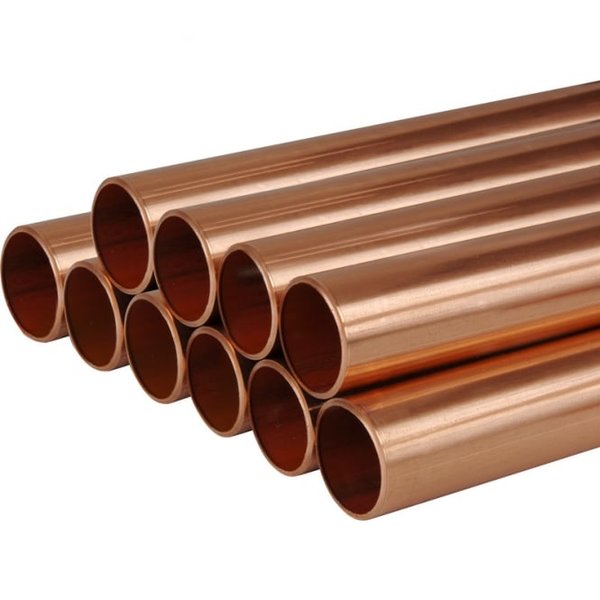

  •  Tubes

Electrical conductivity:

• min 101 % IACS
According to EN: H040 min 101 % IACS



Alloy Name

Cu-OFE


European Standard Number

CW009A

UNS Code

C10100

Manufacturing

Location Pori



Density

8.9 g/cm3, 0.323 lb/in3

Electrical Conductivity

min 100 % IACS

Thermal Conductivity

min 386 W/(m °K), 223 Btu/(ft hr °F)

Modulus of Elasticity

117 GPa, 17 X1000 ksi

Coef. of Thermal Exp. at 20 ºC (68 ºF)

17.6 10-6/°C, 9.8 10-6/°F

EN H040 / R200

Tensile Strength Rm N/mm2 200 - 250
Yield Strength (0.2 %) N/mm2 max 100
Elongation % A50 / A (0.1- < 2.5 mm/ 2.5
mm -)
min - / 42
Hardness HV 40 - 65
Thickness mm  0.2 - 20
